Pricing includes shipping to the continental United States (must be a recognized address)

Delivery estimated at 6-12 weeks depending on quantity and options

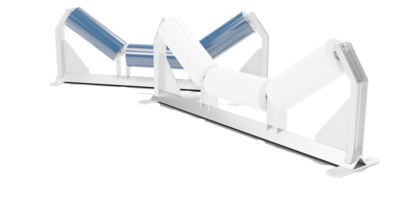

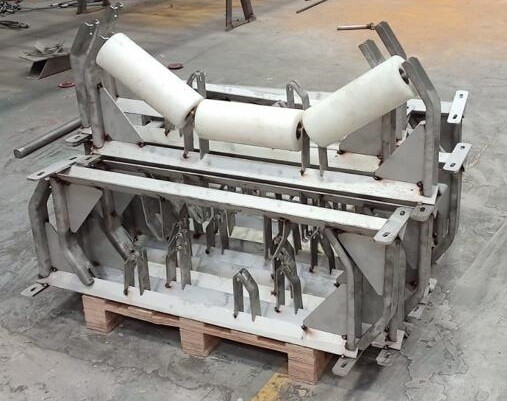

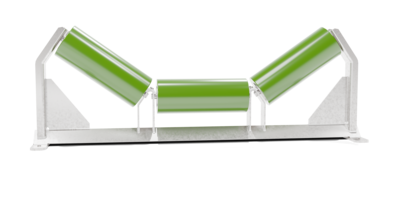

Stainless Idlers with Poly Rolls (First image is fitup tac-weld, pre-nitric passivation)

Made in Turkey with no imported components

• 316 Austenetic Stainless Steel Frame and Polyurethane Rolls with 316 Stainless Axles
• Nitric passivated post weld
• Stainless Idler Clips with stainless machine screws (not simple clip-on pieces)
• Superior fixture-welded carbon steel frame with corner braces to reduce vibration and side-movement
• Labrinth Seals with non-tariff bearings

All idler rolls free spun prior to ship

• Guidelines of CEMA C Rating
• Meets or exceeds CEMA C loading ratings
• Roller End Distance (CEMA 'H'): 37.5 in
• Idler Height: 16.75 in
• Distance Between Mounting Holes: 45 in for 1/2 in bolt
• Mounting hole spacing: 6 in
• Outside Distance: 47 1/2 in standard base
• Trough Angle: 35 deg

• Roll Diameter: 5 in
• Roll Length: 13 in
• Belt Width: 36 in
• Ball Bearing Type: Precision sealed for life SAE 52100 chrome-alloy steel
• Unit Weight: 73 pounds
