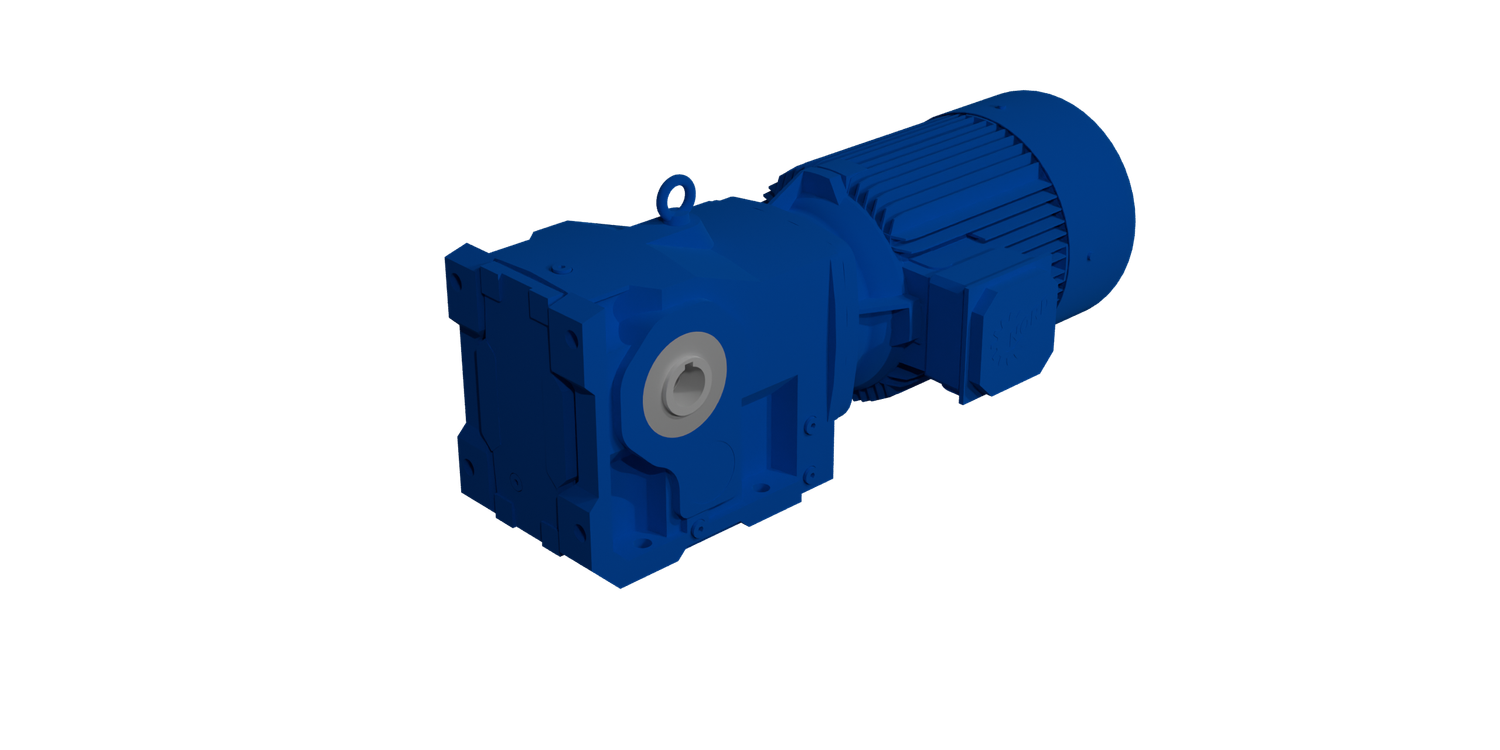

GEAR BOX

Input Speed 1770 rpm

AGMA Class III 2.8 Service Factor at Torque Output

Output Torque 4567 lb-in

Overhung load 1446 lb

Axial Load 2541 lb

Output Shaft Hollow Keyed

Output Shaft Dia 1.500"

Input Shaft Dia NONE Input Shaft Dia NONE

OPTIONS

Backstop (R)

Dual Output Seal (2WD)

Foot Mount (X)

Magnetic Drain Plug (MDP)

Oil Sight Glass (OSG)

Autovent (DR)

Cast Iron Housing

MOTOR

Power 7.5 hp

Voltage 230/460 V

Frequency 60 Hz

Motor SF 1.15

Current 19.5 / 9.75 A

Motor Speed 1770 rpm

Duty S1 - Continuous

MOTOR OPTIONS

Adapter M32x1.5 / 1 inch NPT

Standard Line Powered - Inverter Capable

Thermostat (TW)

Inverter Duty Capable - 10:1 (60 - 6Hz)

NEMA Electrical UL/CSA

IE3 / Premium Efficient

CONFIGURATION

Paint Coating - NSD4: For outdoor installation, moderate environmental contamination

Paint Color Stainless Steel Gray

Lubricant VG220-MIN-EP

Lubrication Qty 1.9 qt

Base Weight 249 lb

Miscellaneous Options

2nd Gearbox Nameplate Ship Loose Standard Nameplate Material 2nd Motor Nameplate Ship Loose Clockwise Rotation Allowed when Viewing the Output Shaft Side B Mineral Oil with EP Additive Nameplate with Customer Material Number
